Schema Diff Wizard
This feature helps you find schema differences between two
databases. It creates a report in HTML format that can be viewed in any browser. Comparison is based on:
Table schema, including column names, datatypes, defaults, foreign keys, nullability and triggers
View columns and SQL script
Stored procedure columns and script
Database specific features like rules and custom datatypes
FAQ about Schema-Diff
| Question: |
What is the format of the output report? |
| Answer: |
The generated report is in HTML format. |
| Question: |
Which type of databases are ideal for comparison? |
| Answer: |
During the life-cycle of any project, engineers create multiple copies of the same
database - one for development and other for production. Often these copies get out of sync
as engineers modify the design to either optimize the database or add new features. The schema
diff feature in WinSQL is ideal to compare such differences.
|
| Question: |
Can I compare databases of different types - meaning schema of an Oracle database with MS SQL Server? |
| Answer: |
Threoritically, you can compare databases residing in two different RDBMS system. However, due to
incompatibilities in certain database objects you will get several mismatch in the report. For example, if you try
to compare an Oracle schema with Microsoft Access, you will get incompatibilities on data types such as TIMESTAMP. |
| Question: |
How is the comparison performed? |
| Answer: |
Schema-Diff comparison is a two-pass process. Initially, WinSQL selects one of the database as the reference database
and checks if the other database has similar objects. This is the first pass. Next, WinSQL switches the reference database
and compares the objects in the second database to the first one.
This results in two reports - each with respect to a database.
|
This feature makes WinSQL a perfect tool to compare differences between a development and
production databases or when you are migrating data from one database to another.
Screen Shots

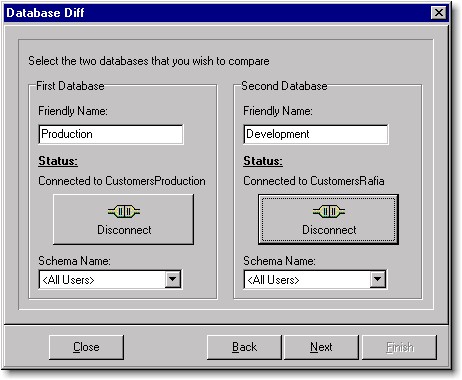

Screen to select the two databases

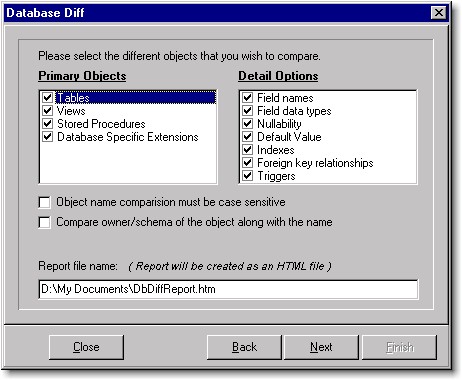

Pick different options for comparison

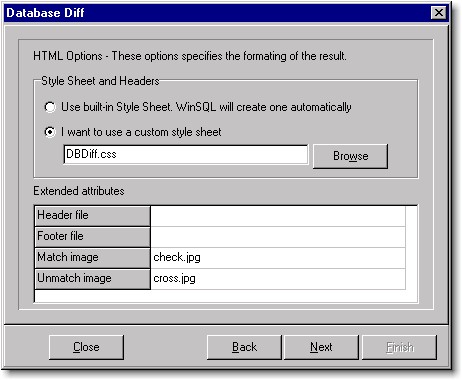

Uses cascading style sheets to specify format. This makes it very easy to change
the output format

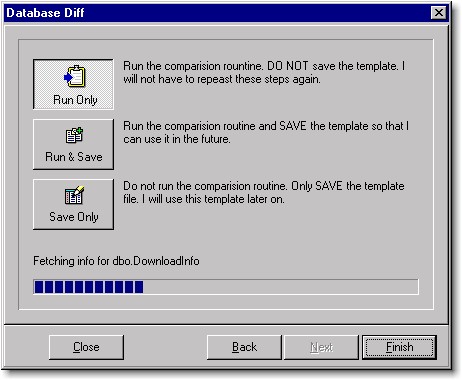

Watch the status as WinSQL compares the objects
|
|
|
|
|
